SIB TEC Polyamide Compression Gland (PG)
Original price
£0.30
-
Original price
£2.90
Original price
£0.31
£0.30
-
£2.90
Current price
£0.31
Description

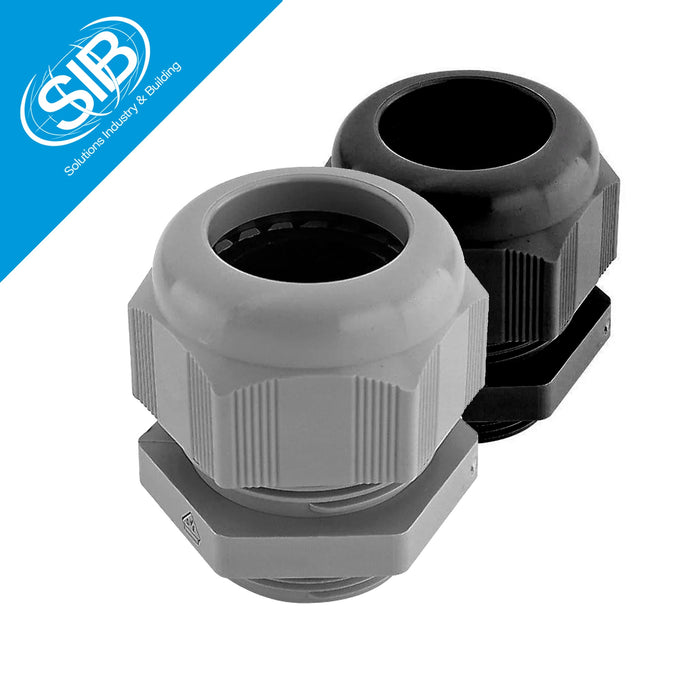

SIB-TEC PG Plastic Cable Glands, are made from high-quality Polyamide, fitted with neoprene O-ring seals, which provide an IP68 protection index.
Kit Contents
x1 Gland (Locknut sold separately).
Directions for Use
Indoor / Outdoor Applications.
Material
Polyamide 6 V2 UL94 Zero Halogen.
Colour

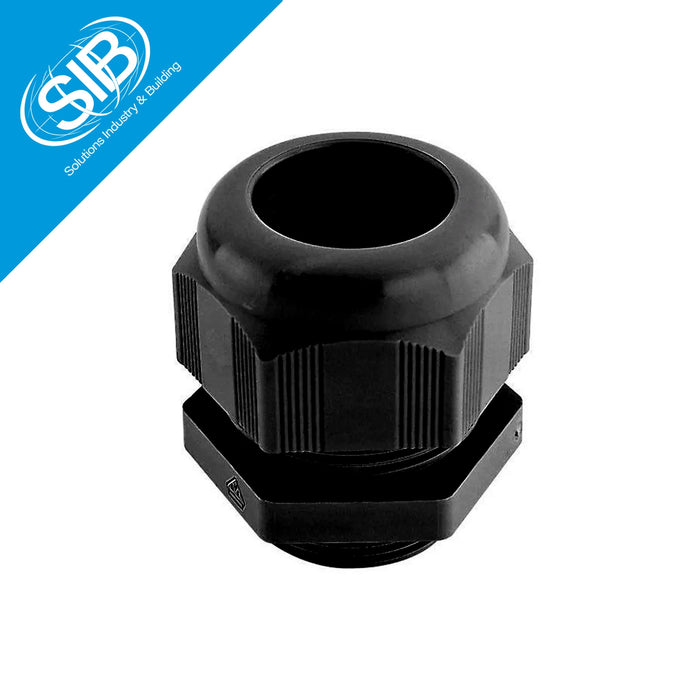

Grey (RAL 7035) & Black (RAL 9005).
RAL 7001 available upon request.
Technical Data
| Type | Polyamide Dometop Gland |
|---|---|
| Design Specification | EN62444:2013 | IEC 62444:2010 | DTS01 Deluge |
| Gland Material | Polyamide |
| Ingress Protection | IP68 | EN60529:1992 (Inc No.1 & No.2) |
| Operating Temp. | -40°C - 100°C |
| Finish | Plastic |
| Seal Material | Neoprene |
| Cable Type | Unarmoured |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
Size Chart
| Gland Size | PG 07 | PG 09 | PG 11 | PG 13.5 | PG 16 | PG 21 | PG 29 | PG 36 |
|---|---|---|---|---|---|---|---|---|
| SIB TEC Part No. (Grey) |
F7000700 | F7000900 | F7001100 | F7001300 | F7001600 | F7002100 | F7002900 | F7003600 |
| SIB TEC Part No. (Black) |
F8000700 | F8000900 | F8001100 | F8001300 | F8001600 | F8002100 | F8002900 | F8003600 |
| Cable Range (mm) | 2.5 - 6.5 | 2.5 - 8.0 | 3.5 - 10.0 | 5.0 - 12.0 | 7.0 - 14.0 | 9.0 - 18.0 | 14.0 - 25.0 | 18.0 - 32.0 |
| Entry Thread (mm) | PG 07 x 1.5 | PG 09 x 1.5 | PG 11 x 1.5 | PG 13.5 x 1.5 | PG 16 x 1.5 | PG 21 x 1.5 | PG 29 x 1.5 | PG 36 x 1.5 |
| Thread Length (mm) | 8 | 8 |
8 |
9 |
10 | 11 | 11 | 13 |
| External ⌀ (mm) | 15.0 | 19.0 | 22.0 | 24.0 | 27.0 | 33.0 | 42.0 | 53.0 |
| Length (mm) | 32.0 | 35.0 | 37.0 | 39.0 | 43.0 | 50.0 | 53.0 | 65.0 |
