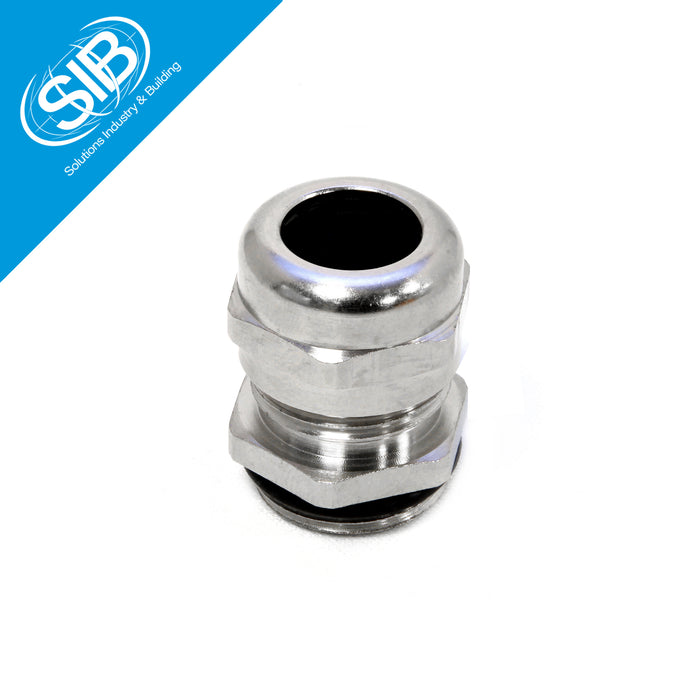

Nickel Plated Roundtop Glands (PG)
Original price
£2.08
-
Original price
£24.95
Original price
£2.84
£2.08
-
£24.95
Current price
£2.84
Description
SIB TEC PG Compression Cable gland has excellent strain relief, is fully insulated, wide clamping range through clamp lamella. O-Ring on external thread.
Kit Contents
1 x Gland (Locknut sold separately)
Directions for Use
Indoor / Outdoor Applications.
Material
Nickel plated brass
Colour
Silver Metal
Technical Data
|
Colour |
Silver Metal |
|---|---|
|
Thread |
PG |
|
IP Index |
IP 68 |
|
Material |
Laiton Nickelé / Néoprène |
|
Max. Operating Temp. |
+100°C |
| Min. Operating Temp. | -40°C |
Size Chart
| Gland Size | 7 |
9 |
11 |
13 |
16 |
21 |
29 | 36 | 42 | 48 |
|---|---|---|---|---|---|---|---|---|---|---|
| No. per Pack | x1 | x1 | x1 | x1 | x1 | x1 | x1 | x1 | x2 | x3 |
| Cable Range (mm) | 2.5 - 6.5 | 4.0 - 9.5 | 6.0 - 11.5 | 7.0 - 13.0 | 8.0 - 15.0 | 11.0 - 19.0 | 16.0 - 26.0 | 22.0 - 34.5 | 27.0 - 4.0 | 35.0 - 48.0 |
| Entry Thread (mm) | PG7 | PG9 | PG11 | PG13 | PG16 | PG21 | PG29 | PG36 | PG42 | PG48 |
| H (mm) | 14 | 17 | 20 |
22 |
24 |
30 |
40 | 50 | 58 | 65 |
| E (mm) | 5 |
6 |
6 |
6.5 |
6.5 |
7 |
8 |
9 |
10 | 10 |
| L (mm) | 25 |
29 |
30 |
32.5 |
34 |
35 |
38 | 42 |
47 | 54 |
| SIB TEC Ref. | C5007000 |
C5009000 |
C5011000 |
C5013000 |
C5016000 |
C5021000 |
C5029000 |
C5036000 |
C5042000 | C5048000 |
