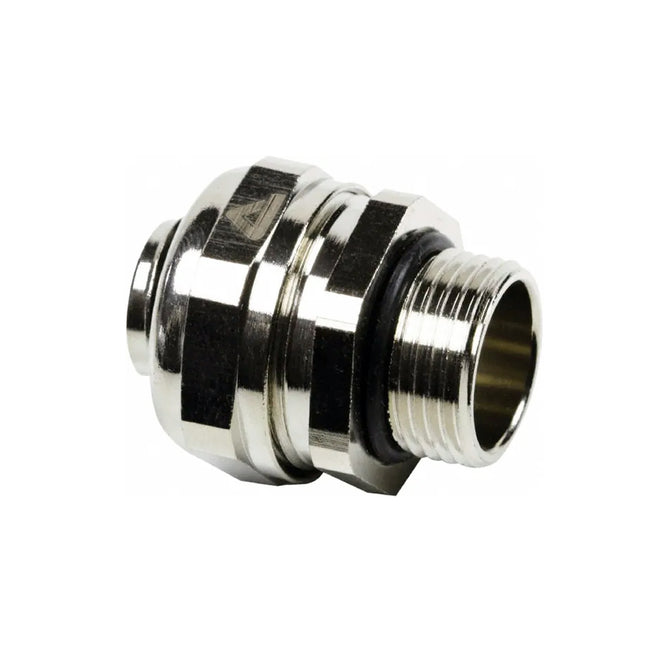

Swivel Glands for Liquid Tight Conduit
by CGUK
Original price
£5.99
-
Original price
£62.93
Original price
£5.99
£5.99
-
£62.93
Current price
£5.99
Description
Swivel glands for liquid tight conduit, Nickel Plated Brass, Waterproof IP67 and are corrosion resistant. These fittings are suitable for environments whre dust is present and water jets operate at high pressures. With an operating temperature between -45°C and +150°C they are capable of withstanding demands of manufacturing and off-shore applications.
Material
Counter nut and body are nickel plated brass. Clamping ring is made from PA6 and the ferrule is made from galvanised steel, the O-rings are NBR rubber.
Colour
Silver.
Technical Data
| Type | Liquid Tight Flexible Conduit Glands |
|---|---|
| Thread Size |
16-63mm |
| Construction | Nickel Plated Brass fitting. Consisting of 4 parts (counter nut, clamping ring, ferrule and body) |
| Max. Operating Temp. |
+105°C |
| Min. Operating Temp. | -45°C |
| IP Rating |
IP67 |
Size Chart
| Product Ref. | Pack Size | Details | Min. internal bore (mm) |
|---|---|---|---|
| DF16MUS | x1 |
16mm fixed |
10.4 |
| DF20MUS | x1 | 20mm fixed | 13.8 |
| DF25MUS | x1 | 25mm fixed | 17.4 |
| DF32MUS | x1 | 30mm fixed | 23.4 |
| DF40MUS | x1 | 40mm fixed | 29.4 |
| DF50MUS | x1 | 50mm fixed | 36.9 |
| DF63MUS | x1 | 63mm fixed | 47.9 |
