MICC RPS Pots & Seals - Heavy Duty
Description
CGUK's RPS heavy duty seals (commonly known as Standard Seals) are designed to be used in conjunction with our RGM glands. Manufactured and tested to BS EN 600702-2:2002 for ambient service temperatures of -20°c to 105°c Dependent on the cable size being used and in turn the gland size being used the pots are supplied in 20mm, 25mm, 32mm and 40mm.
Applications
General Lighting, Fire Alarm Systems, Fire Pumps, Emergency Lighting Systems, Exhaust Fume Extraction, Security Cameras, Emergency Start/Stop Controls, Public Address Systems, Fire Telephones, Elevator Motor Supply, Sprinkler Systems, and many more….

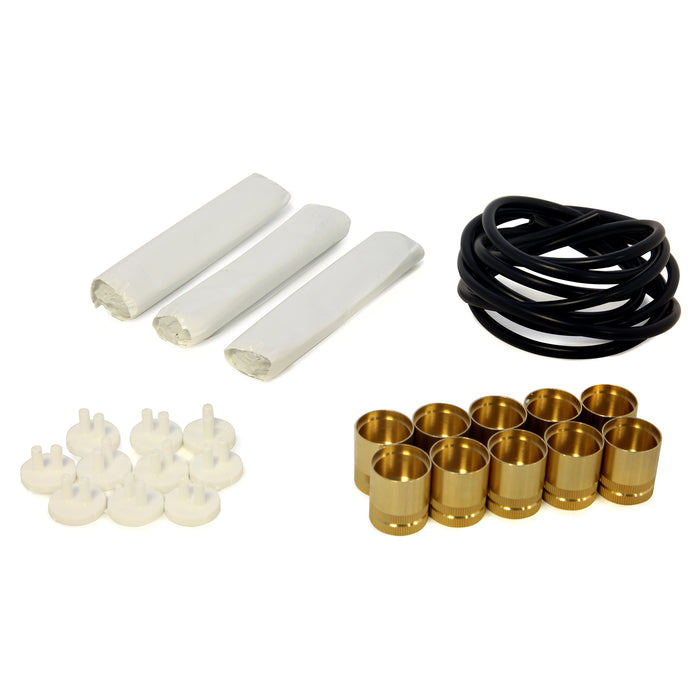

Kit Contents
RPS POTS 20mm x 10, 25 32 & 40mm x2, SEAL OR STUB CAPS 20mm x 10, 25,32 & 40mm x 2, RMX Sealing Compound 20mm x 3 sticks, 25,32 & 40mm 2 sticks, PVC Sleeving Dependent on cores – either 2 or 3 hanks of 1.5mtrs.
Directions for Use
Indoor / Outdoor Applications.
Material
Brass
Colour
Brass
Technical Data
| Type | MICC RPS Pots & Seals -Heavy Duty |
|---|---|
| Thread Size | Metric |
| Material | Brass |
| Max. Operating Temp. | +105°C |
| Min. Operating Temp. | -20°C |
| Test Standards | BS EN 600702-2:2002 |
Size Chart
| Product Ref. |
No. per Pack | Gland Size | Entry Thread - D (mm) |
|---|---|---|---|
| 2H1.5 | x10 | M20 | M20 x 1.5 |
| 2H2.5 |
x10 |
M20 | M20 x 1.5 |
| 2H4 | x10 | M20 | M20 x 1.5 |
| 2H6 | x10 | M20 | M20 x 1.5 |
| 2H10 |
x2 |
M25 | M25 x 1.5 |
| 2H16 | x2 | M25 | M25 x 1.5 |
| 2H25 | x2 | M32 | M32 x 1.5 |
| 3H1.5 | x10 | M20 | M20 x 1.5 |
| 3H2.5 | x10 | M20 | M20 x 1.5 |
| 3H4 | x10 | M20 | M20 x 1.5 |
| 3H6 | x2 | M25 | M25 x 1.5 |
| 3H10 | x2 | M25 | M25 x 1.5 |
| 3H16 | x2 | M25 | M25 x 1.5 |
| 3H25 | x2 | M40 | M40 x 1.5 |
| 4H1.5 | x10 | M20 | M20 x 1.5 |
| 4H2.5 | x10 | M20 | M20 x 1.5 |
| 4H4 | x2 | M25 | M25 x 1.5 |
| 4H6 | x2 | M25 | M25 x 1.5 |
| 4H10 | x2 | M25 | M25 x 1.5 |
| 4H16 | x2 | M32 | M32 x1.5 |
| 4H25 | x2 | M40 | M40 x 1.5 |
