CW Industrial Gland Kit (Peppers)

CW Industrial Gland Kit (Peppers)

by Peppers
£6.06 - £123.35
£6.06
£6.06 - £123.35
£6.06

Description
Peppers “C” type single compression glands provide a controlled IP and environmental seal on the outer sheath and a detachable armour specific clamping system for wire (W), braid/tape (X) armoured cables. The gland has been tested to IP66 and options are available for use with LSOH cables and extreme temperature applications.

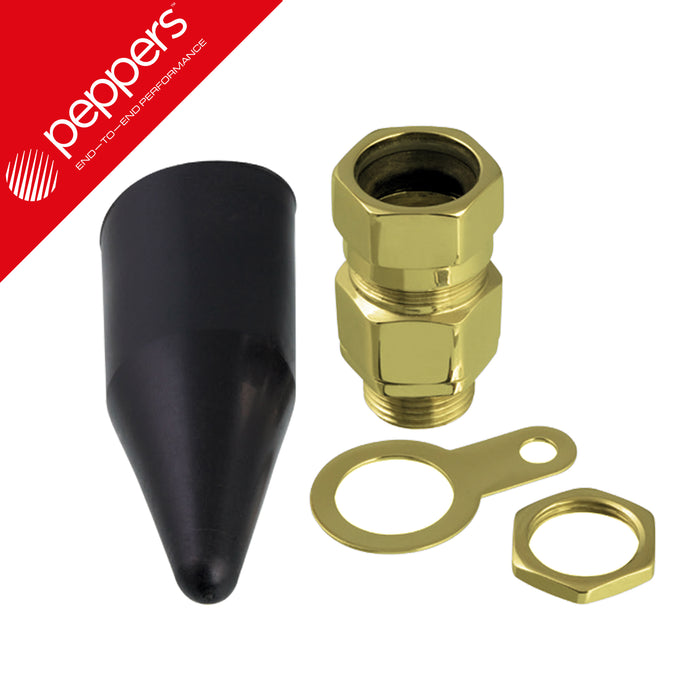

Kit Contents
CW Gland, Brass Earth Tag, Brass Locknut, PVC Shroud.
(x1 per kit)


Directions for Use
Indoor / Outdoor Applications.

Material
Brass.

Colour
Brass.

Technical Data
Type CW
Design Specification

IEC 62444
EN 62444
BS 6121
Gland Material Brass
Ingress Protection IP 66
Finish Brass
Seal Material Neoprene
Cable Type Steel Wire Armour
Armour Clamping 3 Part (with Lock Nut)
Sealing Technique Compression Type
Sealing Area Outer Sheath



Size Chart



Gland Size 16 20S 20 25 32 40 50 63 75
Peppers Part No. C1/W/B/16/20 C1/W/B/20S/20 C1/W/B/20/20 C1/W/B/25/20 C1/W/B/32/20 C1/W/B/42/20 C1/W/B/50/20 C1/W/B/63/20 C1/W/B/75/20
No. per Pack x1 x1 x1 x1 x1 x1 x1 x1 x1
Cable Range (mm) 8.4 - 13.5 11.5 - 16.0 15.5 - 21.1 20.3 - 27.4 26.7 - 34.0 33.0 - 40.6 45.7 - 53.2 58.4 - 65.8 71.1 - 78.0
Entry Thread - D (mm) M16 x 1.5 M20 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5 M75 x 1.5
Entry Thread - E (mm) 16 16 16 16 16 16 16 19 19
Armour ⌀ (mm) 0.9 0.15 - 1.25 0.15 - 1.25 1.25/1.6 1.6/2.0 1.6/2.0 2.0/2.5 2.0/2.5 2.5/3.0
Approx. Length from Shoulder - F (mm) 58.0 58.0 58.0 58.0 65.0 72.0 73.0 76.0 82.0
Hexagon Across Flats - G (mm) 24.0 24.0 30.0 37.6 46.0 55.0
 65.0 80.0
 90.0
Hexagon Across Corners - H (mm) 26.5
 26.5 33.0 41.4 50.6
 60.5 71.5 88.0 99.0
