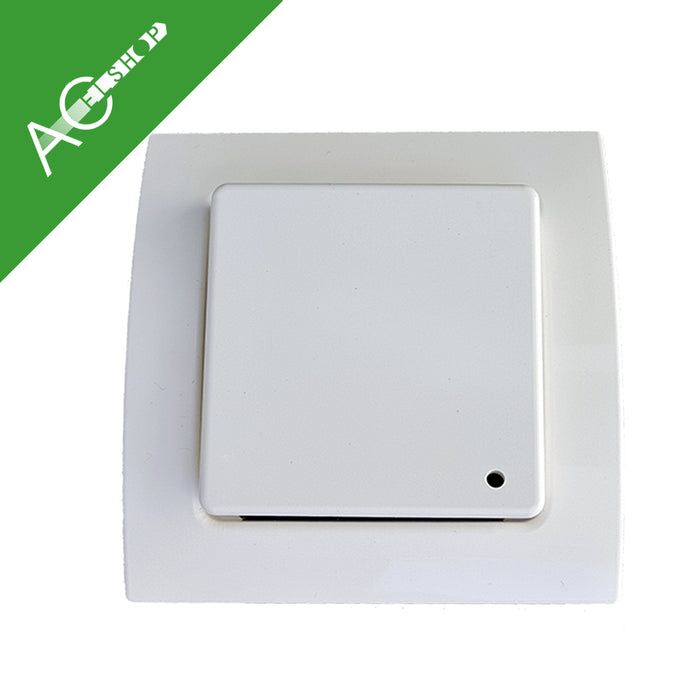

ACelSHOP - Columbus Time Touch Log Timer Switch
Description
Columbus Time Touch Log Timer Switch is used for closed rooms/halls – the revolving doors control the light function and creates the pressure wave. 2-wire – no neutral. The automatic timer or staircase switch – for communal areas– You can repeat, reset and turn on/off. Works isolated or with pneumatic or electronic Columbus timers. 3 sensitivity levels – L = low H = high M = medium – depending on the area. Default = M. Extensive coverage of 700m3. 1 unit is enough for a whole stairway! Comfort is a top priority. Greater security. No ‘dead’ angles. Built-in fixed lux-sensor. Time adjustment of 1-30 min. Fits into original Columbus wall box surface, wall box Europe + British standard box.
Installation Instructions
Included in the box. All wiring should be carried out by a qualified Electrician in accordance with the current regulations.
Applications
Stairwells, Corridors, Basement, Storeroom, Toilets, Laundry/Drying Room, Lift Room.
Kit Contents
x1 Light Switch.
Material
ABS V0.
Colour
White.
Technical Data
| Load Rating | 16A/250V~ and 50Hz for all load types |
|---|---|
| Material | ABS V0. |
| Compatible | With 16 mm deep single gang BS accessory plate |
| IP Rating | IP20 |
| Dimension (mm) | 29(h)x86(w)x86(d) |
| Colour | White RAL 9010 |
| Power Dissipation | < 0,3 w |
| Temperature | 0°C - +50°C |
| Air Humidity | 5% - 95% RH |
| Terminals | 2 x 2,5 mm² |
| Accuracy | +/- 5-10% |
| Timing: TS-TT20AIR | 10 sec - 30 min |
Size Chart
| Product | No.per Pack | Type | Time Delay | Mounting |
|---|---|---|---|---|
| TS-TT20 | x1 | 2 pole, 2 wire | > 10 min | 20mm & 25mm deep boxes |
