BW Industrial Gland Kit
by CGUK
Original price
£1.36
-
Original price
£16.18
Original price
£1.36
£1.36
-
£16.18
Current price
£1.36
Description
BW two-part brass indoor cable glands are suitable for all types of Single Wire Armour (SWA) cable in dry indoor applications to provide mechanical cable retention and electrical continuity via the armour wire termination. CGUK's BW range of industrial cable glands is designed and tested to BS6121: Part 1: 2005.
Kit Contents

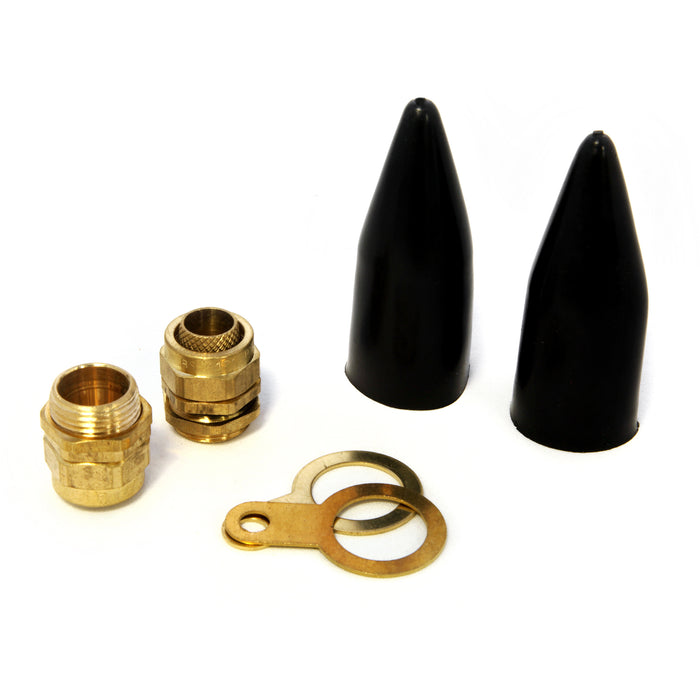

x2 Glands, x2 Locknuts, x2 Earth Tags & x2 Shrouds up to and including 32mm, 40mm and upwards. Contains x1 of each item.
Directions for Use
Indoor, dry applications.
Material
Brass.
Colour
Brass.
Technical Data
| Type | BW |
|---|---|
| Design Specification | BS 6121 : Part I |
| Gland Material | Brass |
| Ingress Protection | IP54 |
| Finish | Brass |
| Cable Type | Steel Wire Armour |
| Armour Clamping | Cable Retention |
| Sealing Technique | Compression Type |
| Operating Temp. | -40 - 80°C |
Size Chart
| Gland Size | 20S | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
|---|---|---|---|---|---|---|---|---|
| No. per Pack | x2 | x2 | x2 | x2 | x1 | x1 | x1 | x1 |
| Cable Range (mm) | 8.0 - 15.8 | 11.7 - 20.8 | 17.0 - 27.2 | 23.5 - 33.5 | 29.0 - 39.9 | 39.5 - 52.6 | 51.3 - 65.3 | 62.5 - 78.0 |
| Entry Thread - D (mm) | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 x 1.5 | M40 x 1.5 | M50 x 1.5 | M63 x 1.5 | M75 x 1.5 |
| Entry Thread - E (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Under Armour ⌀ - A (mm) | 11.6 | 13.9 | 19.9 | 26.2 | 32.1 | 44.0 | 55.9 | 67.9 |
| Armour ⌀ (mm) | 0.9 | 0.9/1.25 | 1.25/1.6 | 1.6/2.0 | 1.6/2.0 | 2.0/2.5 | 2.0/2.5 | 2.5/3.0 |
|
Approx. Length from Shoulder - F (mm) |
24 | 25 | 26 | 28 | 25 | 36 | 30 | 40 |
| Hexagon Across Flats - G (mm) | 22.0 | 27.0 | 37.6 | 47.3 | 50.0 | 70.1 | 80.0 | 98.8 |
| Hexagon Across Corners - H (mm) | 24.9 | 30.5 | 42.2 | 53.6 | 57.0 | 77.2 | 87.4 | 109.2 |
